Solvent Extractors
To conserve valuable bench space, all samples are arranged in a circle and the instrument rotates allowing each sample to be accessed from the front. Individual condensers are connected to the centrally located water manifold through quick disconnect fittings. The water supply and drain manifolds have one water supply line in, one drain line out, allowing the instrument to rotate freely without tangling the tubing

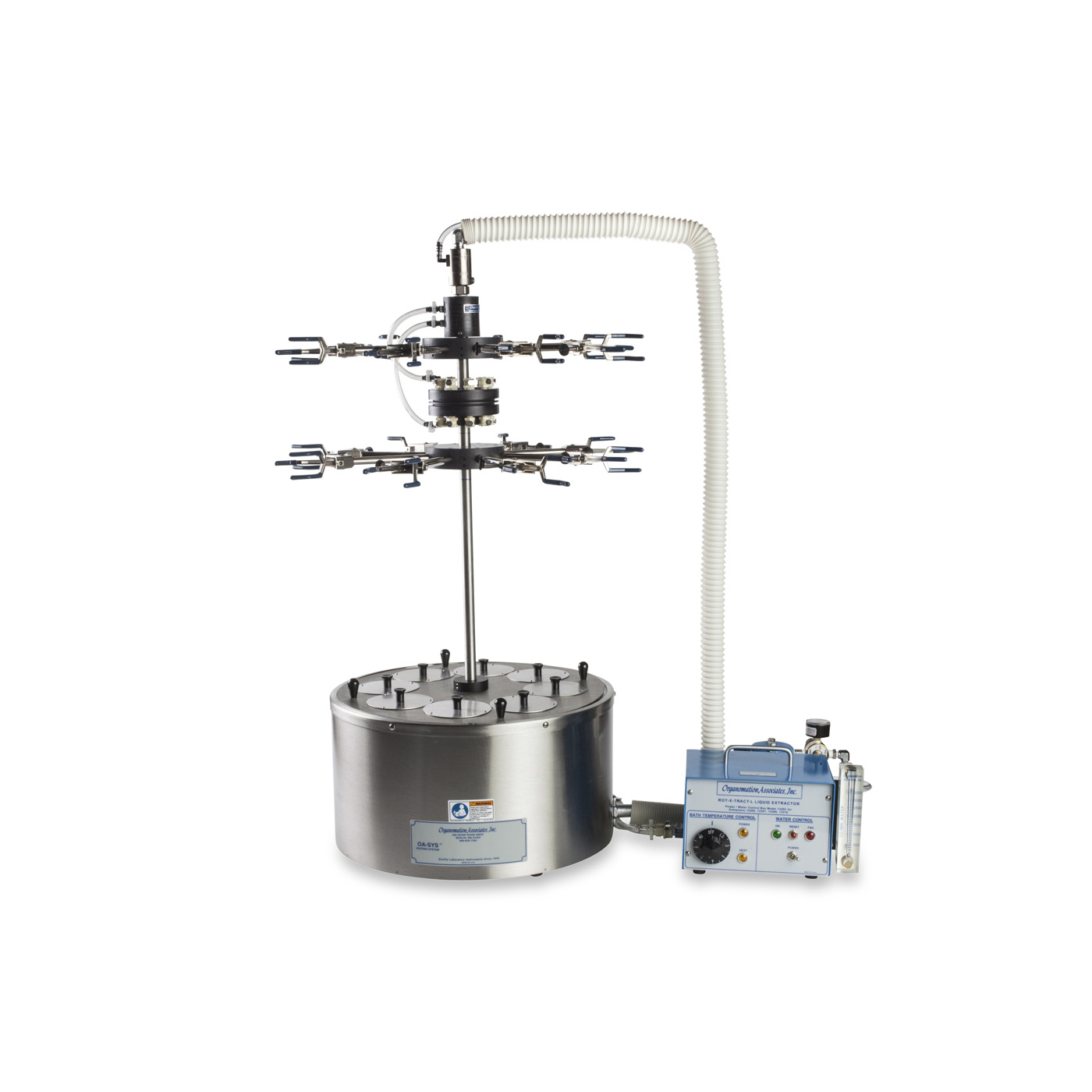

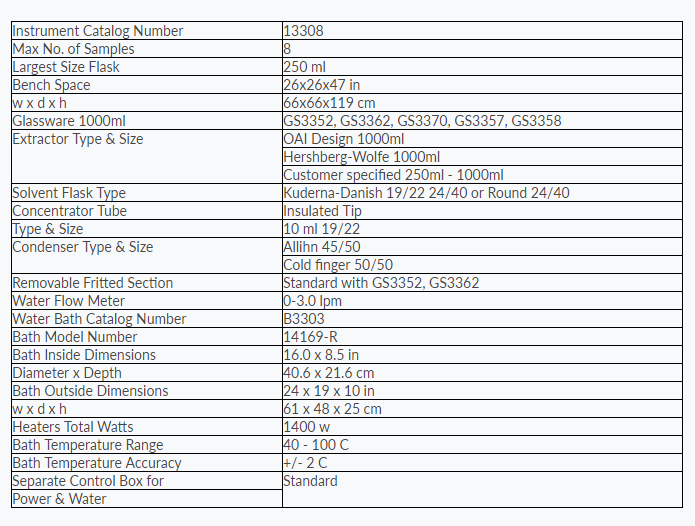

Solvent Extractor - ROT-X-TRACT-L
Advantages:
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: One water supply line in, one drain line out
Standard Features:
- Stainless steel construction
- Stepped bath rim and cover disk seals steam chamber
- Each condenser water line attached to centrally located water manifold
- Water control box
- Flow meter
- Laboratory grade materials stand up to organic solvents
Optional Features:
- Intrinsically safe type Z purged bath (Option Code -Z)
- 240V wiring and plug (Option Code -2)
For more information please contact a sales technician

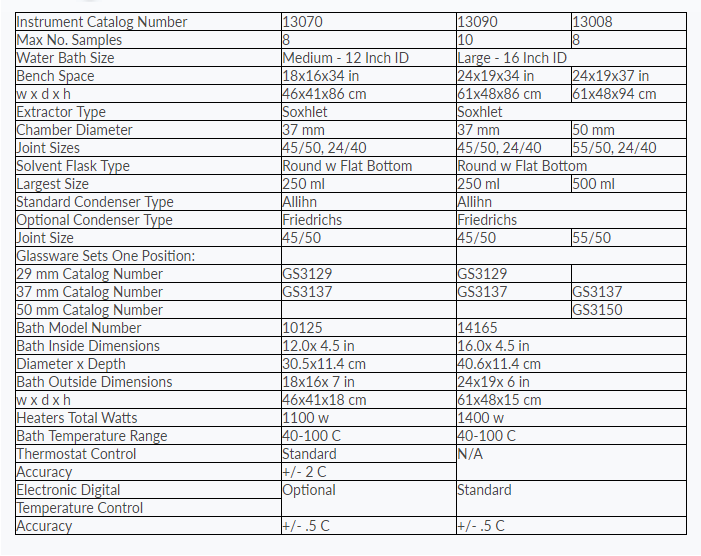

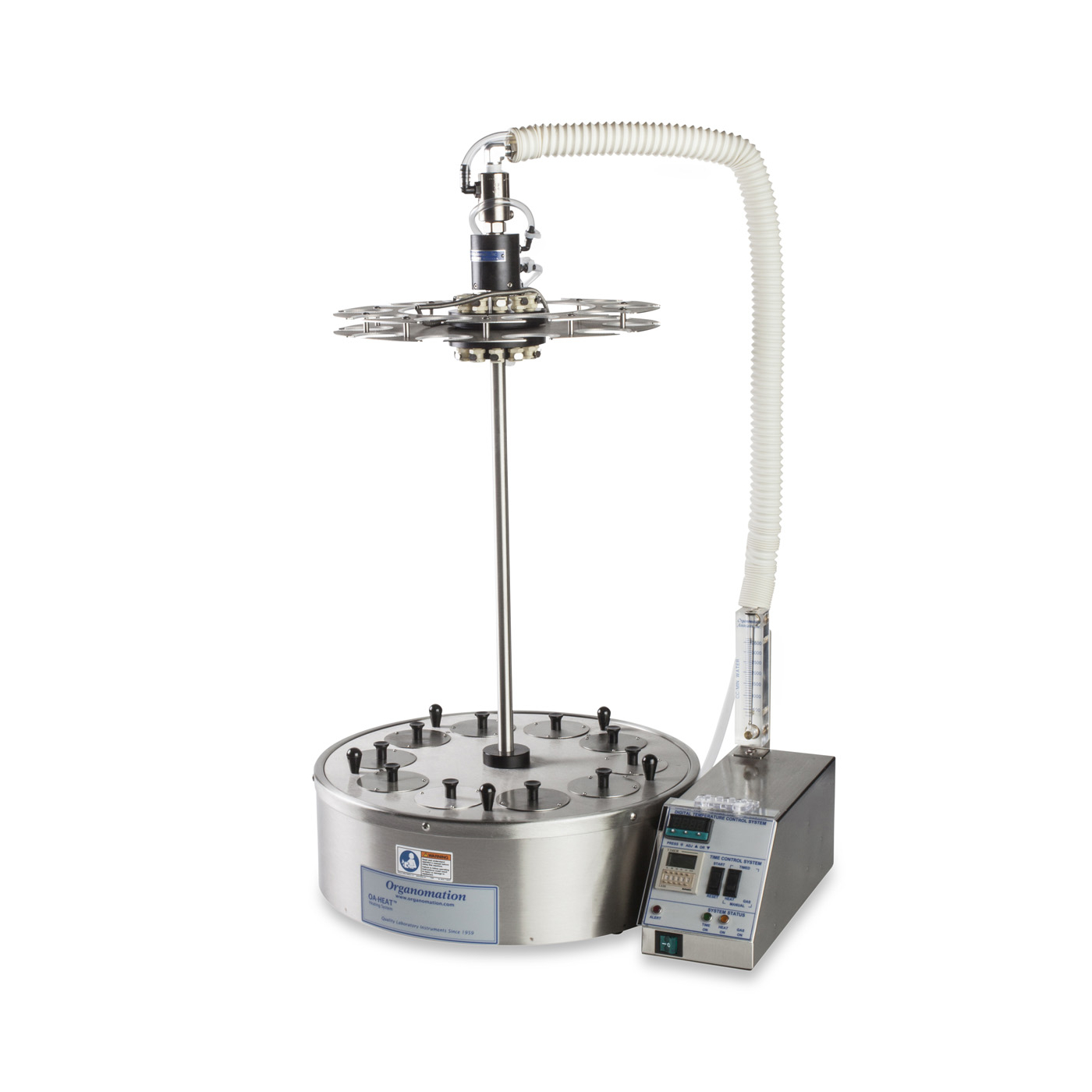

Solvent Extractor - ROT-X-TRACT-S
Advantages:
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: one water supply line in, one drain line out
Standard Features:
- Stainless steel construction
- Stepped bath rim and cover disk seals steam chamber
- Each condenser water line attached to centrally located water manifold
- Laboratory grade materials stand up to organic solvents
Optional Features:
- Intrinsically safe type Z purged bath (Option Code -Z)
- 240V wiring and plug (Option Code -2)
For more information please contact a sales technician

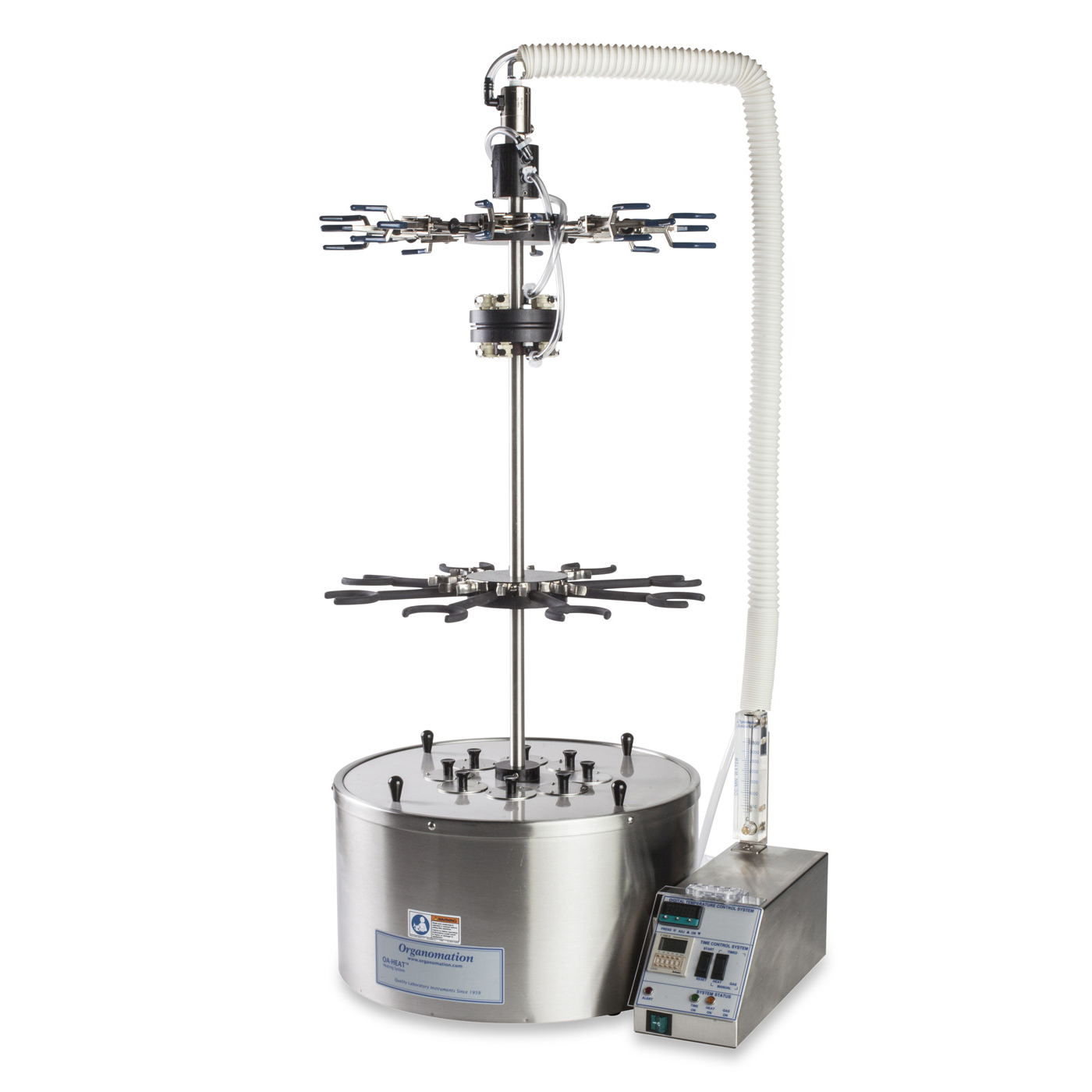

Solvent Extractor - ROT-X-TRACT-LC
Advantages:
- Multiple simultaneous extractions: extract and concentrate up to eight samples simultaneously
- Precise controls: digital timer and heat controls
- Fewer connections: one water supply line in, one drain line out
- Organomation vacuum insulated concentrator tubes keep delicate samples safe
- Water bath is gentler than jacketed concentration tubes in traditional set-up
Standard Features:
- Stainless steel construction
- Stepped bath rim and cover disk seals steam chamber
- Each condenser water line attached to centrally located water manifold
- Side control box
- Water flow meter
- Laboratory grade materials stand up to organic solvents
Optional Features:
- All associated glassware
- Intrinsically safe type Z purged bath (Option Code -Z)
- 240V wiring and plug (Option Code -2)
For more information please contact a sales technician
