Nitrogen Generator
NITRO-GEN
NITRO-GEN 20
The generator uses a hollow-fiber membrane to convert compressed air to a stream of 95-99% pure nitrogen gas. The NITRO-GEN 20 produces up to 20 L/min of nitrogen gas and is recommended for evaporation of up to 48 sample positions.
Advantages:
- Compact and Lightweight: Small footprint conserves valuable lab space
- Simple Setup: Easy to pair with any Organomation blowdown evaporator; no additional tubing or connectors required
- Economical: Provides nitrogen gas at a fraction of the cost of nitrogen cylinders and competing generators
- Low Maintenance: Life expectancy of 10 years with no required yearly maintenance
- No Electricity Required: Generator runs off of pressure provided by the compressed air source
Standard Features:
- Adjustable outlet pressure regulator, 0-100 psi
- External clean air filter
- Requires an oil-less compressed air source
For more information please contact a sales technician

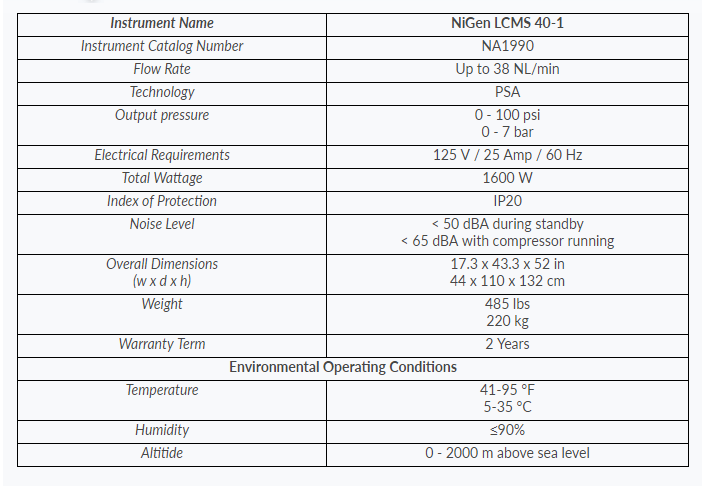

NIGEN 40-1
The NiGen 40-1 is compatible with all Organomation nitrogen evaporators up to 100 sample positions, along with all LC-MS analyzers on the market. It is equipped with a fully integrated oil-free compressor, eliminating the need for a separate source of compressed air. Special soundproof casing keeps the noise to a minimum while the compressor is running.
The NiGen 40-1 relies on Pressure Swing Adsorption (PSA) technology to separate nitrogen from the air. The unit uses molecular sieves to remove oxygen, water, and trace hydrocarbons, leaving a stream of high purity nitrogen gas. Compressed air and generated nitrogen are stored in tanks of up to 50 liters
Advantages:
- Convenient: Integrated air compressor eliminates the stress of sourcing an appropriate compressor to run your generator
- Low Maintenance: Compressor maintenance required only after 16,000 working hours
- Quiet: Less than 50 decibels in standby mode
- Reliable: High capacity gas storage tanks reduce the frequency of compressor cycles, reducing noise levels and wear on the motor
Standard Features:
- Built-in oil free air compressor
- Full turn wheels
- Touch screen interface
- Condensation drain line
- Two year warranty
Compatible With:
- All Organomation evaporators up to 100 sample positions
- All LC-MS analyzers on the market
For more information please contact a sales technician
