S-EVAP-RB
Organomation’s S-EVAP solvent evaporators with solvent collection condense and collect excess solvent into individual or central collection flasks, so that it can be disposed of properly. Limiting emissions is key for the health of people and the environment and is an important first step for any laboratory to “go green”.
The S-EVAP-RB evaporator and S-EVAP-KD evaporator are each capable of up to 97% solvent recovery

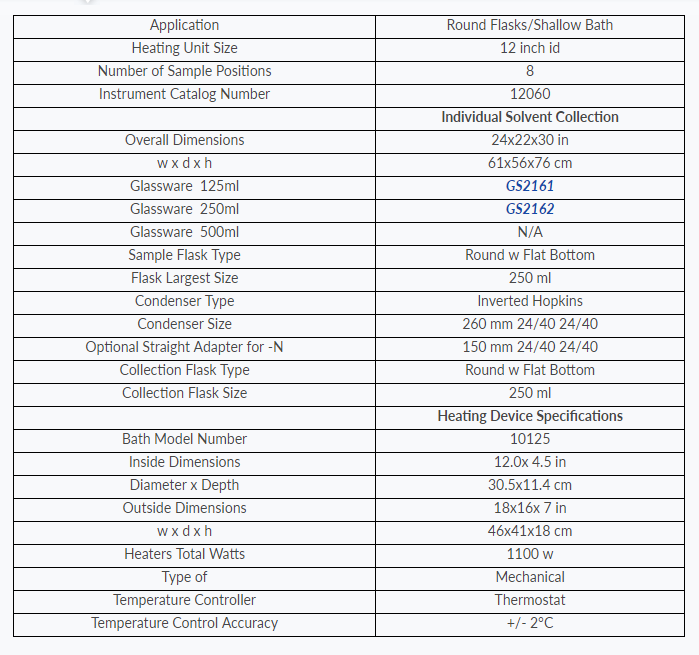

S-EVAP-RB 8 position 250 ml
Advantages:
- Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: one water supply line in, one drain line out
Standard Features:
- Mechanical thermostat with temperature control +/- 2°C
- Manifold for holding solvent recovery condensers
- Flow meter and rigid supply tube for condenser water supply
- Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
- Parallel water supply/drain manifolds with quick disconnect tube fittings
- Bath temperature range 30°C – 100°C
- Evaporate solvents with boiling points up to 65°C
Optional Features:
- Intrinsically safe type Z purged bath (Option Code -Z)
- 240V wiring and plug (Option Code -2)
- Nitrogen purge manifold (Option Code -N)
- Digital electronic temperature control +/- .5°C (Option Code -CB)
For more information please contact a sales technician

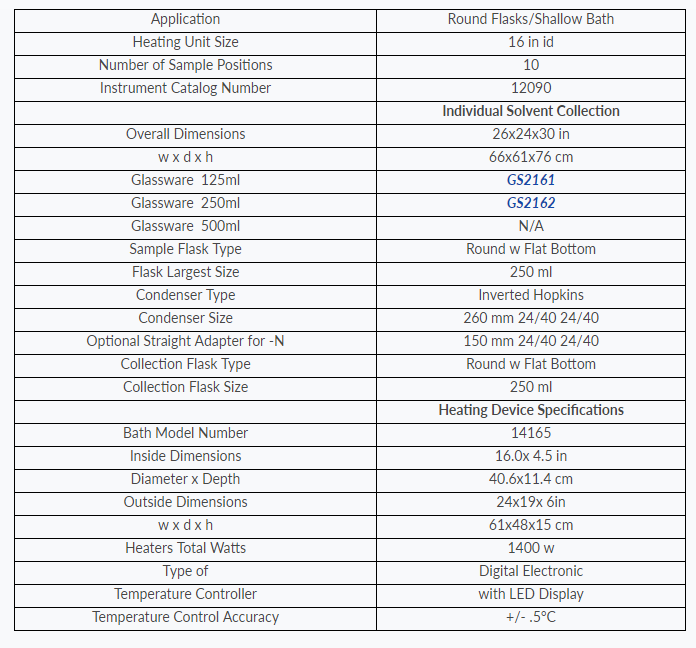

S-EVAP-RB 10 Position 250 mL
Advantages:
- Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: one water supply line in, one drain line out
Standard Features:
- Manifold for holding solvent recovery condensers
- Flow meter and rigid supply tube for condenser water supply
- Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
- Parallel water supply/drain manifolds with quick disconnect tube fittings
- Bath temperature range 30°C – 100°C
- Evaporate solvents with boiling points up to 65°C
- Digital electronic temperature control +/- .5°C
Optional Features:
- Intrinsically safe type Z purged bath (Option Code -Z)
- 240V wiring and plug (Option Code -2)
- Nitrogen purge manifold (Option Code -N)
For more information please contact a sales technician

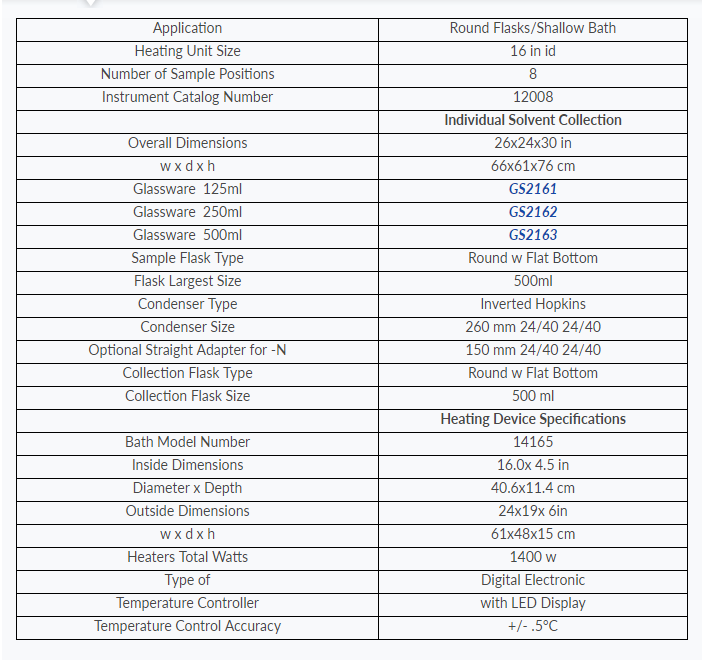

S-EVAP-RB 8 Position 500 mL
Advantages:
- Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: one water supply line in, one drain line out
Standard Features:
- Manifold for holding solvent recovery condensers
- Flow meter and rigid supply tube for condenser water supply
- Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
- Parallel water supply/drain manifolds with quick disconnect tube fittings
- Bath temperature range 30°C – 100°C
- Evaporate solvents with boiling points up to 65°C
- Digital electronic temperature control +/- .5°C
Optional Features:
- Intrinsically safe type Z purged bath (Option Code -Z)
- 240V wiring and plug (Option Code -2)
- Nitrogen purge manifold (Option Code -N)
For more information please contact a sales technician
