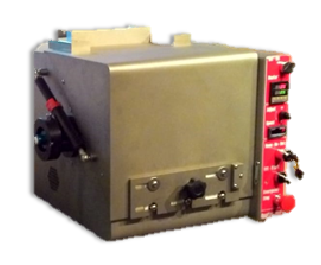

QuattroCPC LabPrep 250 mL
CPC are the ultimate choice for purification Of synthethic & natural products. Also, Your 1st choice for chromatographic preparation of very valuable inorganics, such as precious metals, lanthanides & actidines.
50-90 % process chromatography / extraction, solvent/column cost
IL / SFC / SFC-MS / MS / MS-MS / HPLC / HPLC-MSp
Uniquely allows infinitely polar to infinitely non-polar prep in one run
Typically 5 to 40 g per 1000ml capacity
Electrical interlock on the housing door ensuring that it cannot be opened while rotor is moving6
SPECIFICATIONS
| Feature | Description |
|---|---|
|
Rotor Volume |
250 mL |
|
Temperature |
From ambient + 10 C to a rotor chamber maximum of 35 C approx. Sub ambient temperature control will only be available if air inlet feed by sub-ambient air flow (we recommend a portable air conditioning unit ; this is not included
|
|
Rotor Speed |
Max 630rpm (preset by AECS). Instrument Modular |
|
Rotor housing and casework |
Stainless steel, designed to contain any rotor damage. For CPC rotor assembly & CPC Block are 316 Stainless Steel
|
|
Chassis |
316 Stainless Steel of 6 mm thickness, to ensure user safety |
|
Safety |
[1] Electrical Interlock on the housing door ensuring that it cannot be opened while the rotor is moving.
[2] Master electric isolator disconnects the power before the end cover can be removed, rotor power energized by a key switch, emergency sop button de-energizes rotor power, rotor door interlock release de-energizes rotor power
|
