N-EVAP Product Line
Organomation’s N-EVAP nitrogen evaporators are extremely well suited for numerous sample preparation methodologies. We have created a diverse product line with instruments ranging from six to forty-five sample positions. Our nitrogen evaporators utilize adjustable nitrogen blow down technology allowing for full control of nitrogen flow to samples, with no wasted nitrogen gas. We combine this technology with uniform heat applied efficiently through either water or dry baths. This technique saves labs money by simultaneously maximizing solvent evaporation volume and rate.

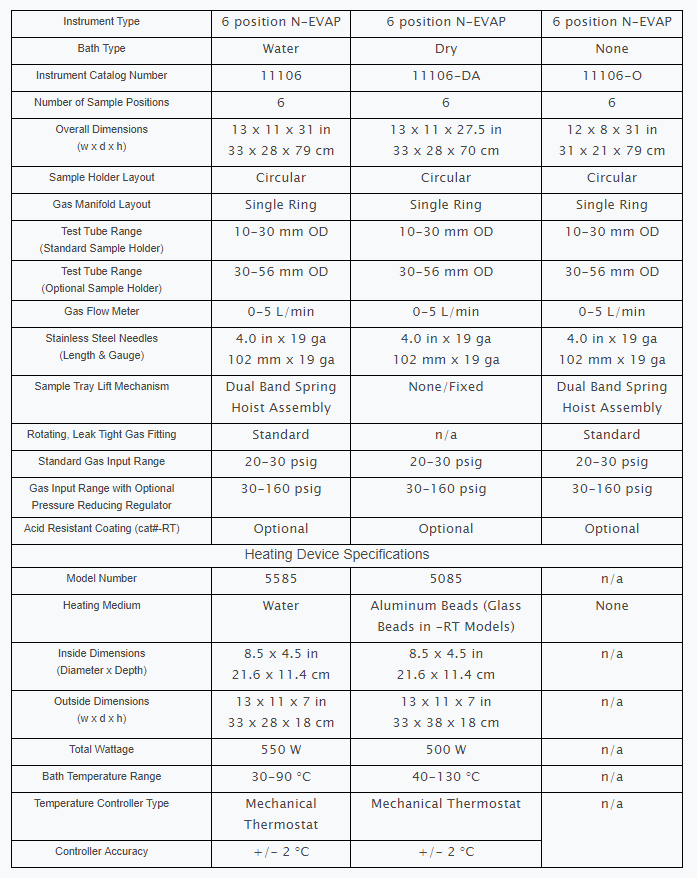

6 Position N-EVAP Nitrogen Evaporator
Advantages:
- Small Footprint: N-EVAP Model# 111 has the smallest footprint of all the N-EVAPs
- Flexible: A large sample holder option can be added to accommodate vials with a larger outside diameter in the range of 30-56 mm
- Gentle: N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples
- Individualized Control: Gas flow can be controlled at each sample position via needle valves
Standard Features:
- Nitrogen filter
- Adjustable flow meter, 0-10 lpm
- High pressure phthalate free tubing for safety
- High temperature limit switch for safety
- Dual band spring hoist assembly (except in dry bath model)
- Precision needle valve tube assembly
- Needles, 4 inch x 19 gauge with chrome plated brass hub and stainless steel shaft
Optional Features:
- 220v wiring harness (Option Code# -2)
- Z-Purge/intrinsically safe purge case (Option Code# -Z)
- Acid resistant coating on instrument and needles (Option Code# -RT)
For more information about the N-EVAP please contact a sales technician
12 Position N-EVAP Nitrogen Evaporator
Advantages:
- Small Footprint: N-EVAP Model# 111 has the smallest footprint of all the N-EVAPs
- Flexible: A small sample holder option can be added to accommodate vials with a smaller outside diameter in the range of 5-16 mm
- Gentle: N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples
- Individualized Control: Gas flow can be controlled at each sample position via needle valves
Standard Features:
- Nitrogen filter
- Adjustable flow meter, 0-10 lpm
- High pressure phthalate free tubing for safety
- High temperature limit switch for safety
- Dual band spring hoist assembly (except in dry bath model)
- Precision needle valve tube assembly
- Needles, 4 inch x 19 gauge with chrome plated brass hub and stainless steel shaft
Optional Features:
- 220v wiring harness (Option Code# -2)
- Z-Purge/intrinsically safe purge case (Option Code# -Z)
- Acid resistant coating on instrument and needles (Option Code# -RT)
For more information about the N-EVAP please contact a sales technician

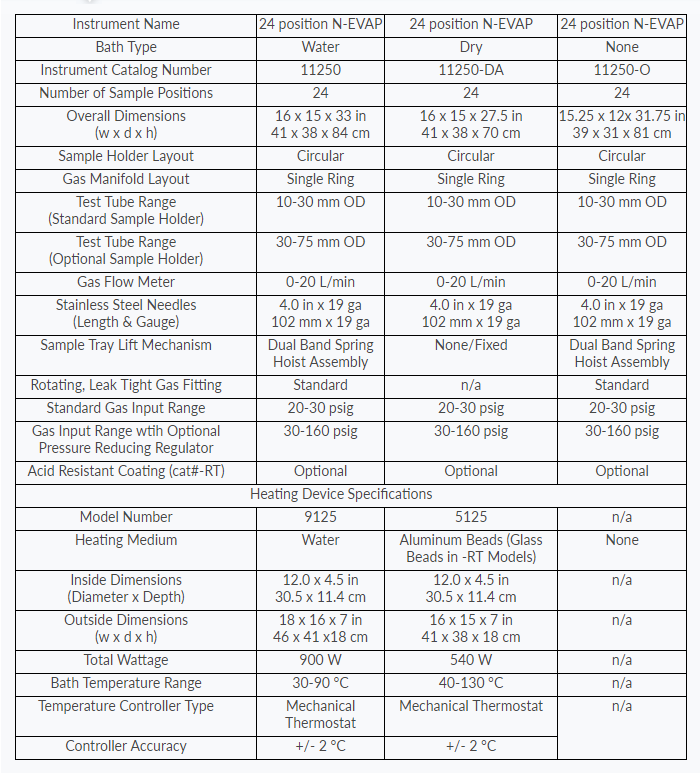

24 Position N-EVAP Nitrogen Evaporator
Advantages:
- Flexible: A large sample holder option can be added to accommodate vials with a larger outside diameter in the range of 30-75 mm
- Gentle: N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples
- Individualized Control: Gas flow can be controlled at each sample position via needle valves
Standard Features:
- Nitrogen filter
- Adjustable flow meter, 0-20 lpm
- High pressure phthalate free tubing for safety
- High temperature limit switch for safety
- Dual band spring hoist assembly (except in dry bath model)
- Precision needle valve tube assembly
- Needles, 4 inch x 19 gauge with plated brass hub and stainless steel shaft
Optional Features:
- 220v wiring harness (Option Code -2)
- Z-Purge/intrinsically safe purge case (Option Code -Z)
- Acid resistant coating on instrument and needles (Option Code -RT)
- Side control box with built-in digital controller, timer, and pressure regulator (Option Code -CB)
For more information about the N-EVAP please contact a sales technician

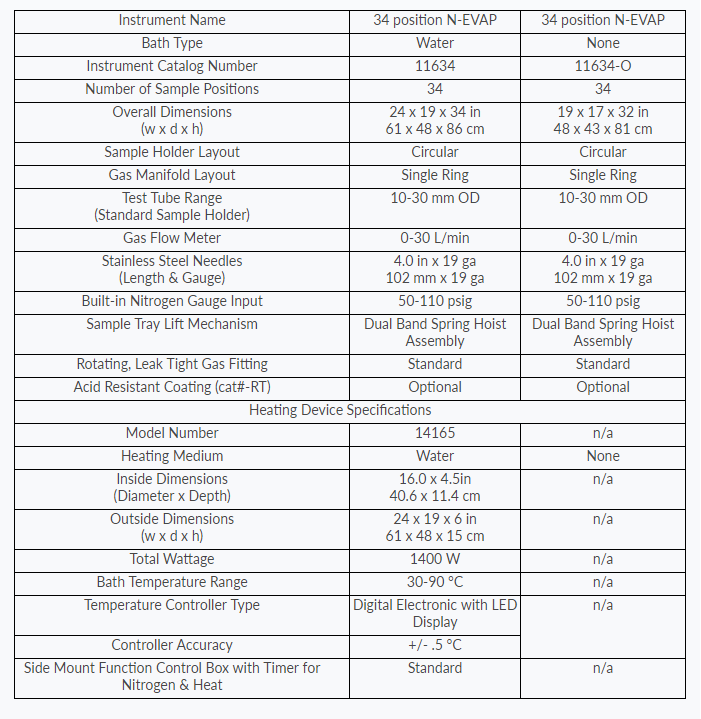

34 Position N-EVAP Nitrogen Evaporator
Advantages:
- Gentle: N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples
Individualized Control: Gas flow can be controlled at each sample position via needle valves
Digital Controls: The water bath come standard with a side control box which contains a pressure regulator, timer, and digital temperature controller
Standard Features:
- Nitrogen filter
- Adjustable flow meter, 0-30 lpm
- Built-in pressure reducing regulator
- Side control box
- Digital temperature controller
- Electronic timer
- Safety control cover plate
- High pressure phthalate free tubing for safety
- High temperature limit switch for safety
- Dual band spring hoist assembly (except in dry bath model)
- Precision needle valve tube assembly
- Needles, 4 inch x 19 gauge with brass plated hub and stainless steel shaft
Optional Features:
- 220v wiring harness (Option Code -2)
- Z-Purge/intrinsically safe purge case (Option Code -Z)
- Acid resistant coating on instrument and needles (Option Code -RT)
For more information about the N-EVAP please contact a sales technician

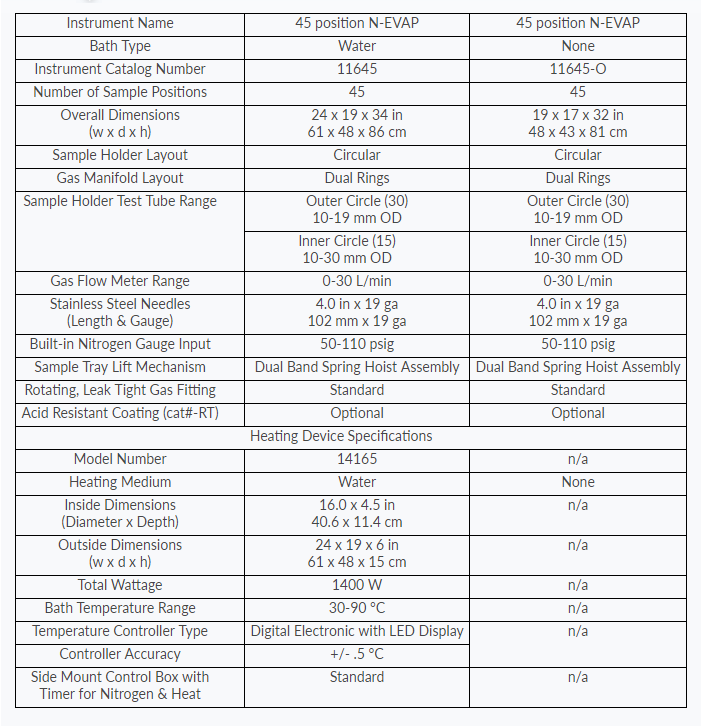

45 Position N-EVAP Nitrogen Evaporator
Advantages:
- Gentle: N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples
- Individualized Control: Gas flow can be controlled at each sample position via needle valves
- Digital Controls: The water bath come standard with a side control box which contains a pressure regulator, timer, and digital temperature controller
Standard Features:
- Nitrogen filter
- Adjustable flow meter, 0-30 lpm
- Built-in pressure reducing regulator
- Side control box
- Digital temperature controller
- Electronic timer
- Safety control cover plate
- High pressure phthalate free tubing for safety
- High temperature limit switch for safety
- Dual band spring hoist assembly (except in dry bath model)
- Precision needle valve tube assembly
- Needles, 4 inch x 19 gauge with brass plated hub and stainless steel shaft
Optional Features:
- 220v wiring harness (Option Code -2)
- Z-Purge/intrinsically safe purge case (Option Code -Z)
- Acid resistant coating on instrument and needles (Option Code -RT)
For more information about the N-EVAP please contact a sales technician
20 Position N-EVAP Nitrogen Evaporator
Advantages:
- Automation: Samples are raised out of the bath and the gas flow is shut-off after the timed endpoint has been reached
- Flexible: A 9 position large sample instrument can be chosen to accommodate vials with a larger outside diameter in the range of 30-54 mm
- Gentle: N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples
- Individualized Control: Gas flow can be controlled at each sample position via needle valves
Standard Features:
- Adjustable flow meter, 0-20 lpm
- Built-in pressure reducing regulator
- High pressure phthalate free tubing for safety
- High temperature limit switch for safety
- Safety control cover
- Digital temperature controller
- Electronic timer
- Dual nitrogen filters
- Precision variable valve technology
- Pressurized cylinder technology
- Safety circuit breaker
- Precision needle valve tube assembly
- Needles, 4 inch x 19 gauge with plated brass hub and stainless steel shaft
Optional Features:
- 220v wiring harness (Option Code# -2)
- Z-Purge/intrinsically safe purge case (Option Code# -Z)
- Acid resistant coating on instrument and needles (Option Code# -RT)
- Large vessel instrument, 9 positions, for vial outside diameters of 30-54 mm (cat# 11209-A)
For more information about the N-EVAP please contact a sales technician
