MICROVAP Product Line
Microplate Evaporator
Small Batch Evaporator
Organomation’s MICROVAP laboratory evaporators are used in numerous sample preparation methodologies, and are designed for controlled concentration of small samples.
These instruments are light, compact and digitally controlled for ease of use.
Single Plate MICROVAP
Advantages:
- Compact design: The MICROVAP product line has the smallest footprint of all of Organomation’s nitrogen evaporators
- Ease of use: Temperature and gas levels are easily set using the digital temperature controller and gas flow meter
- Versatility: Quickly convert dry block and/or gas manifold to 15 or 24 positions using conversion kits
Standard Features:
- Adjustable flow meter
- Digital temperature control
- High temperature limit switch
- High pressure tubing
- 2 inch x 19 gauge needles
- Nitrogen filter
- Anodized aluminum dry block
Optional Features:
- 220v wiring harness (Option Code -2)
- Z-Purge/intrinsically safe purge case (Option Code -Z)
- Manifold and stand only; no heating platform (Option Code -O)
For more information please contact a sales technician

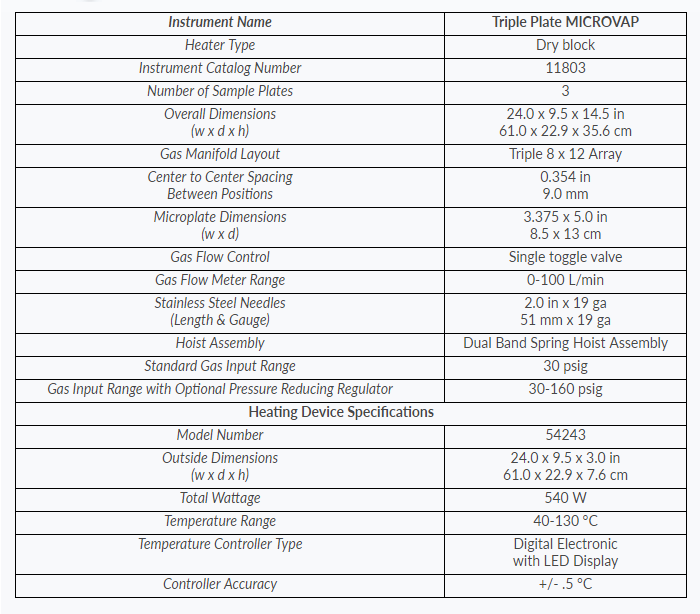

Triple Plate MICROVAP
Advantages:
- High throughput: Evaporate up to three 96 well plates at once
- Ease of use: Temperature and gas levels are easily set using the digital temperature controller and gas flow meter
- Flexibility: Toggle switches allow gas flow to be turned on and off at each plate
Standard Features:
- Adjustable flow meter
- Digital temperature control
- High temperature limit switch
- High pressure tubing
- 2 inch x 19 gauge needles
- Nitrogen filter
- Anodized aluminum dry block
Optional Features:
- 220v wiring harness (Option Code -2)
- Z-Purge/intrinsically safe purge case (Option Code -Z)
For more information please contact a sales technician

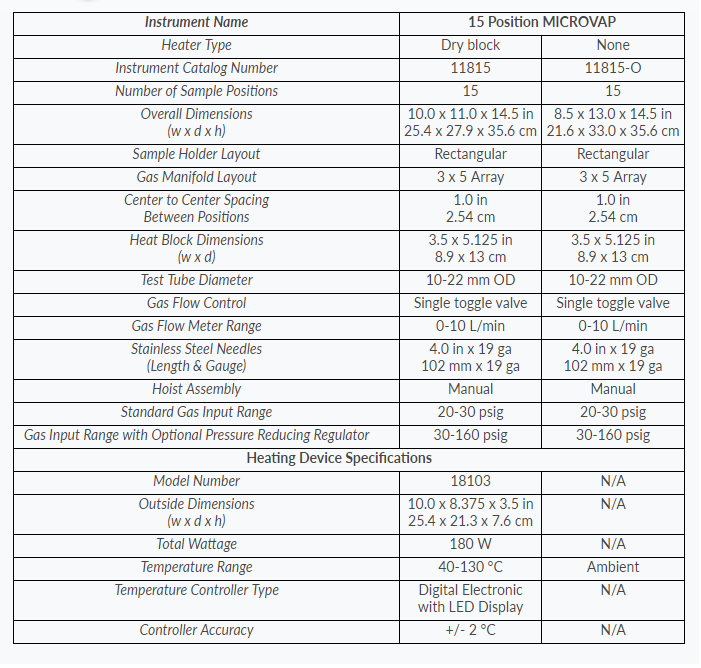

15 Position MICROVAP
Advantages:
- Compact design: The MICROVAP product line has the smallest footprint of all of Organomation’s nitrogen evaporators
- Ease of use: Temperature and gas levels are easily set using the digital temperature controller and gas flow meter
- Versatility: Quickly converts to a 24 position MICROVAP or single position MICROVAP microplate evaporator using dry block and gas manifold conversion kits
Standard Features:
- Adjustable flow meter
- Digital temperature control
- High temperature limit switch
- High pressure tubing
- 4 inch x 19 gauge needles
- Nitrogen filter
- Anodized aluminum dry block
Optional Features:
- 220V wiring harness (Option Code -2)
- Z-Purge/intrinsically safe purge case (Option Code -Z)
- Manifold and stand only; no heating platform (Option Code -O)
For more information please contact a sales technician

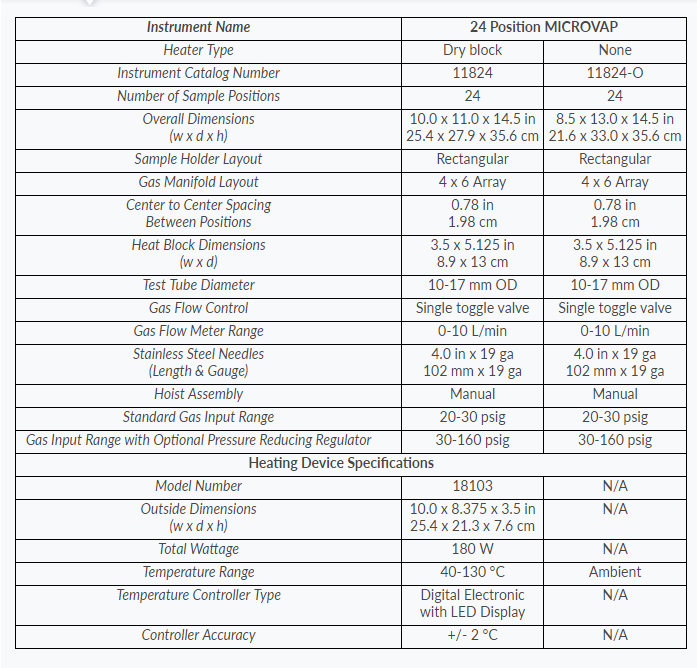

24 Position MICROVAP
Advantages:
- Compact design: The MICROVAP product line has the smallest footprint of all of Organomation’s nitrogen evaporators
- Ease of use: Temperature and gas levels are easily set using the digital temperature controller and gas flow meter
- Versatility: Quickly converts to a 15 position MICROVAP or single position MICROVAP microplate evaporator using dry block and gas manifold conversion kits
Standard Features:
- Adjustable flow meter
- Digital temperature control
- High temperature limit switch
- High pressure tubing
- 4 inch x 19 gauge needles
- Nitrogen filter
- Anodized aluminum dry block
Optional Features:
- 220V wiring harness (Option Code -2)
- Z-Purge/intrinsically safe purge case (Option Code -Z)
- Manifold and stand only: no heating platform (Option Code -O)
For more information please contact a sales technician
