Laboratory Chillers
In some applications, a cold water source is enough to keep your condensers cool during routine sample preparation procedures. As the solvent vapor comes in contact with the cooled condensers, the solvent becomes a liquid, allowing the solvent to be collected.
However, depending on the testing performed in your laboratory, a recirculating chiller system may be recommended to allow your solvent evaporator or extractor to operate as efficiently as possible. Organomation is proud to recommend the following Polyscience units to all customers looking for a recirculating chiller to complement their S-EVAP or ROT-X-TRACT.
Standard Features:
- Large, dual displays present temperature and pressure or flow rate simultaneously
- Compact, portable design takes up less floor space
- Cooling at ambient temperatures as high as 35°C
- Powerful turbine pump
- Choice of compressor sizes
- User-adjustable temperature, pressure, and flow rate alarms
- External temperature tracking and communications capability (optional)

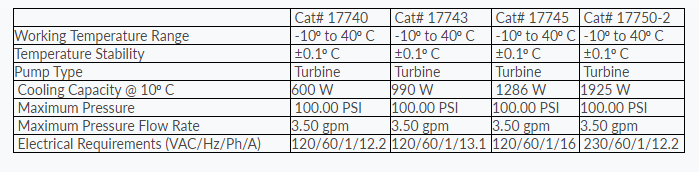

Key Spesification:
- Working Temperature: -10° to +40°C; -10° to +70°C with heater option
- Temperature Stability: ±0.1°C
- Cooling Capacity: Up to 2900 watts @ 20°C
- Maximum Pressure: As high as 100 psi (6.9 bar)
- Maximum Flow: As high as 3.5 gpm (13.2 lpm)
For more information please contact a sales technician
